French Drain Solutions for Effective Shellharbour Runoff Management

Addressing Water Ingress Challenges in Shellharbour

A homeowner in Shellharbour encountered a serious and worsening problem with water ingress. Rainwater from two adjacent properties, positioned at a higher elevation, started to flow into the garden and seep beneath the foundation of the house. This unwelcome intrusion caused damage to the flooring, contributed to rising damp, and led to mould growth inside the property, jeopardising the integrity of recent renovations.

How Do You Determine the Origin of Water Ingress?

The issue arose from both surface runoff and subsurface water flowing downhill from the back and side gardens of neighbouring properties. Without an effective drainage system to intercept this influx, the water was forced to flow underneath the house.

Developing an Effective Drainage Solution

CS Plumbing crafted and installed a gravity-fed French drain system specifically designed to capture and redirect water before it could reach the home’s foundation.

The project comprised several vital elements:

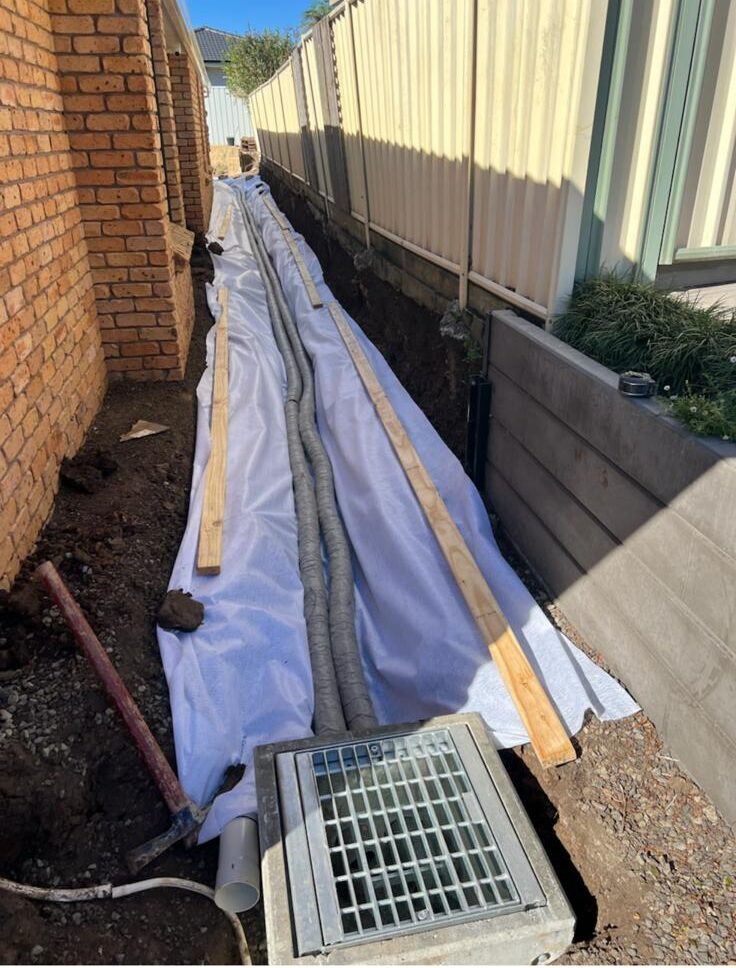

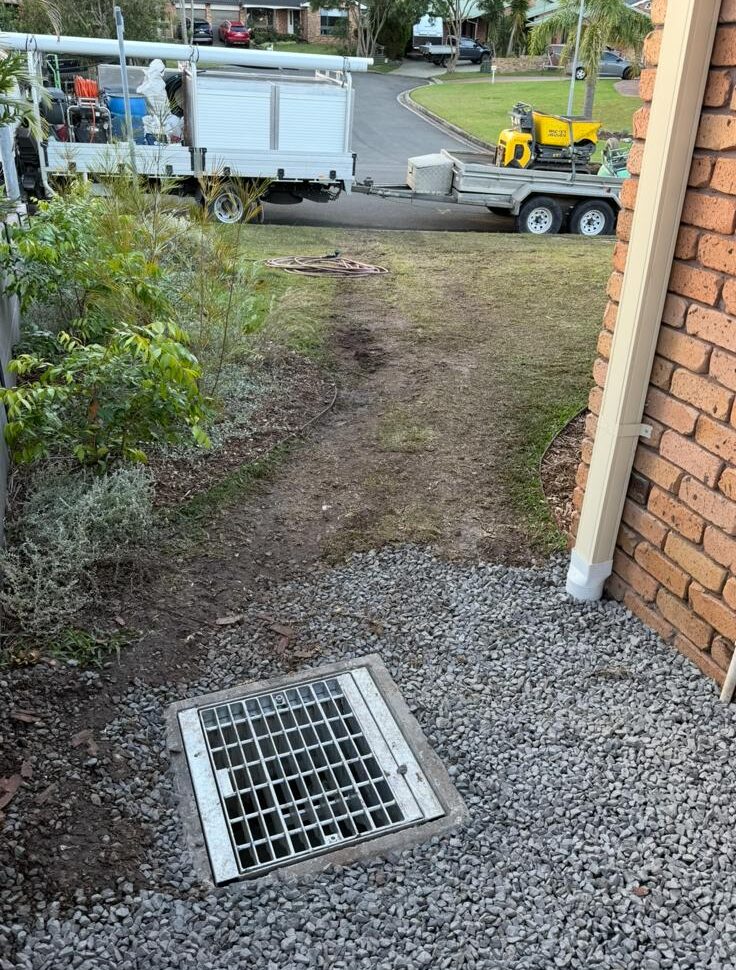

A French drain system precisely engineered to collect surface and subsurface water from neighbouring properties, directing it through gravity to a concrete pit.
A 100mm PVC pipe extending from the pit to the kerb, featuring strategically drilled holes to ensure efficient water discharge.
Three new, larger-diameter Colorbond metal downpipes replacing the original smaller pipes, connected to new 100mm PVC piping leading to the kerb.
A retaining wall system constructed along the boundary, employing concrete sleepers and galvanised steel posts, with auger holes drilled using an excavator to create a sturdy barrier to hold back the neighbouring garden.

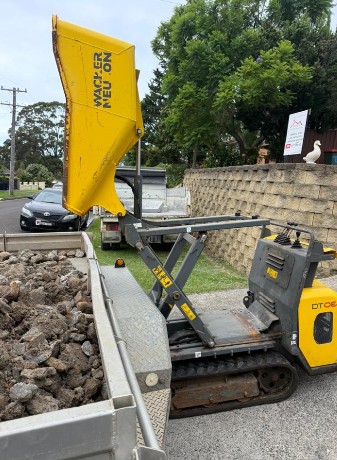

Effective soil removal on-site, facilitated by a dumper for efficient site management.

What Measures Can You Implement for Efficient Water Management?

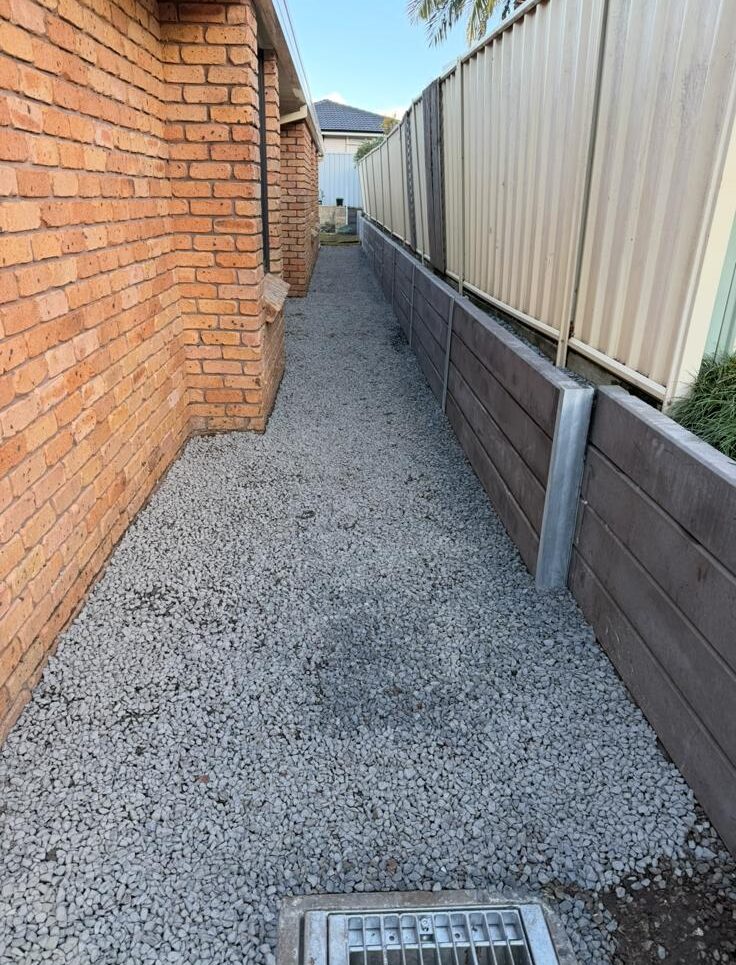

The newly installed drainage system now effectively captures both surface and subsurface water at the property boundary, ensuring it is redirected away from the home. This solution offers the homeowner a durable, low-maintenance option that protects their foundation, flooring, and investment in renovations.
