If you are a property owner with a shed on your acreage and have become tired of relying on extension leads from your main residence, it is crucial to contemplate having it properly wired. Whether your shed serves as a basic storage shed requiring merely a light and a power outlet, or as a fully equipped workshop where you operate welders and compressors, there exists a systematic approach to follow. In NSW, the only legal and safe method to accomplish this task is by engaging the services of a licensed electrician.

This comprehensive guide details the necessary steps to provide power to your shed, outlining the requirements for your electrician's installation and giving an estimate of potential costs in the Mid North Coast region.

Initiating Your Shed Wiring Project: Understanding the Cable Run

The most vital aspect of any shed wiring undertaking is creating a reliable power source that connects your main switchboard to your shed. Depending on the size of your property, this distance can range from 30 to over 100 metres. The longer the cable run, the larger the cable size required to effectively manage voltage drop, ensuring your shed receives the necessary power efficiently.

You essentially have two main options for your cable run:

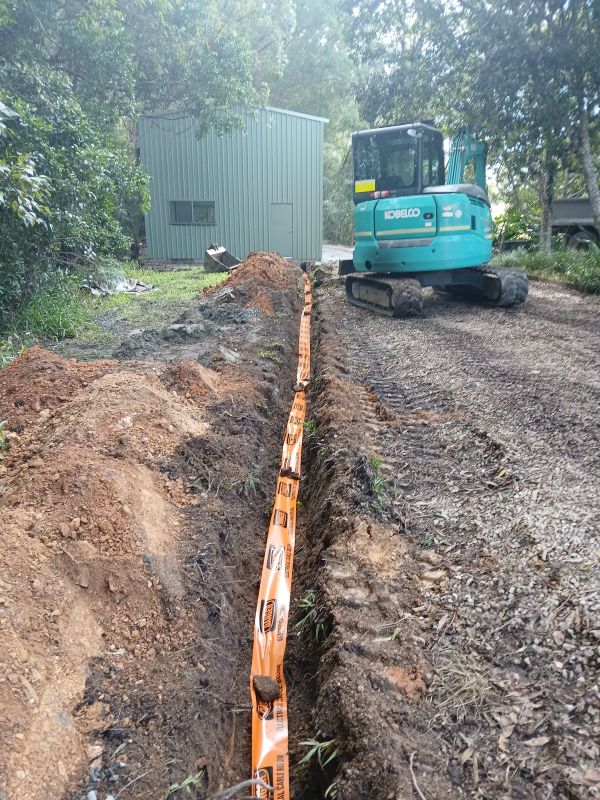

• Underground cable run — This is the preferred and most aesthetically pleasing option. A licensed electrician will install heavy-duty cable within orange conduit, buried at least 500mm deep (or deeper if vehicles are expected to traverse the area). This approach protects the cable from adverse weather conditions, animals, and falling branches, making it ideal for most acreage properties.
• Overhead cable run — Although less common in contemporary installations, this method may be necessary if you encounter solid rock or challenging terrain that complicates trenching. Overhead installations must comply with specific clearance heights and support poles, which can significantly increase overall costs.

For most properties in Bellingen, Coffs Harbour, and the Mid North Coast, the underground option remains the best choice. Your electrician in Bellingen can evaluate your site and recommend the most effective route for your installation.

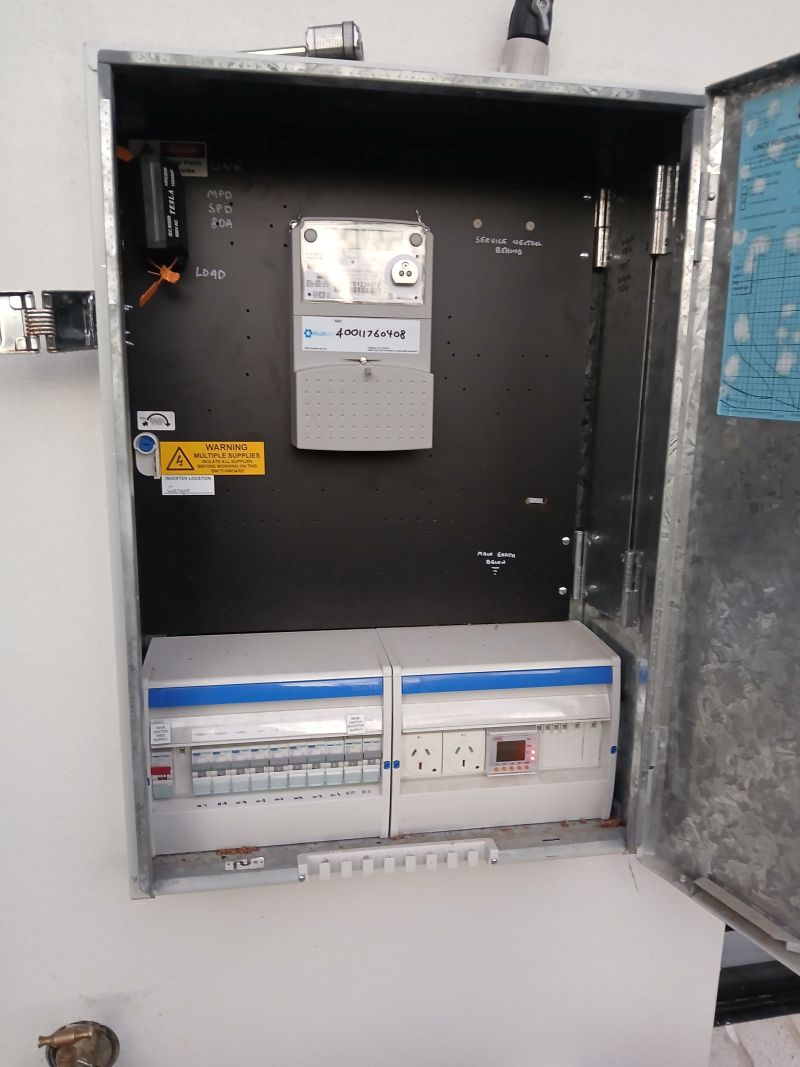

Creating a Dedicated Sub-Board for Effective Shed Power Management

It is insufficient to merely run a single cable to the shed and expect to plug in devices without additional infrastructure. Any shed that receives a proper power supply must include its own dedicated sub-board, also known as a distribution board. This setup functions as a mini switchboard within the shed, effectively managing all the electrical circuits and ensuring safe operation.

Your sub-board will typically comprise the following components:

• Main switch — This switch allows you to isolate all power to the shed independently from the main house, providing an extra layer of safety.
• RCDs (safety switches) — These devices are mandatory under NSW electrical regulations. They instantaneously cut the power in milliseconds if a fault occurs, which is critical in a shed environment that is often exposed to moisture, dust, and potential hazards.
• Circuit breakers — These provide individual protection for each circuit within your shed, covering lighting, general power, and specific tool circuits, ensuring that you can operate multiple devices without the risk of overloading.

If your house's main switchboard is older, your electrician may also recommend upgrading the switchboard to accommodate the additional load directed to the shed, ensuring that all connections remain safe and efficient.

What Essential Equipment Should Be Installed Inside the Shed?

The specific installations carried out by your electrician inside the shed will be tailored to its intended use. Here’s a detailed breakdown of what these installations generally include.

Optimising a Basic Storage Shed Setup

For a shed primarily intended for storing tools, a ride-on mower, or general equipment, consider the following installations:

• LED batten lights — Installing one or two ceiling-mounted LED battens can effectively illuminate the entire space. Your trusted electrician can provide insights into the most suitable lighting layout based on the shed's dimensions and your specific storage needs.

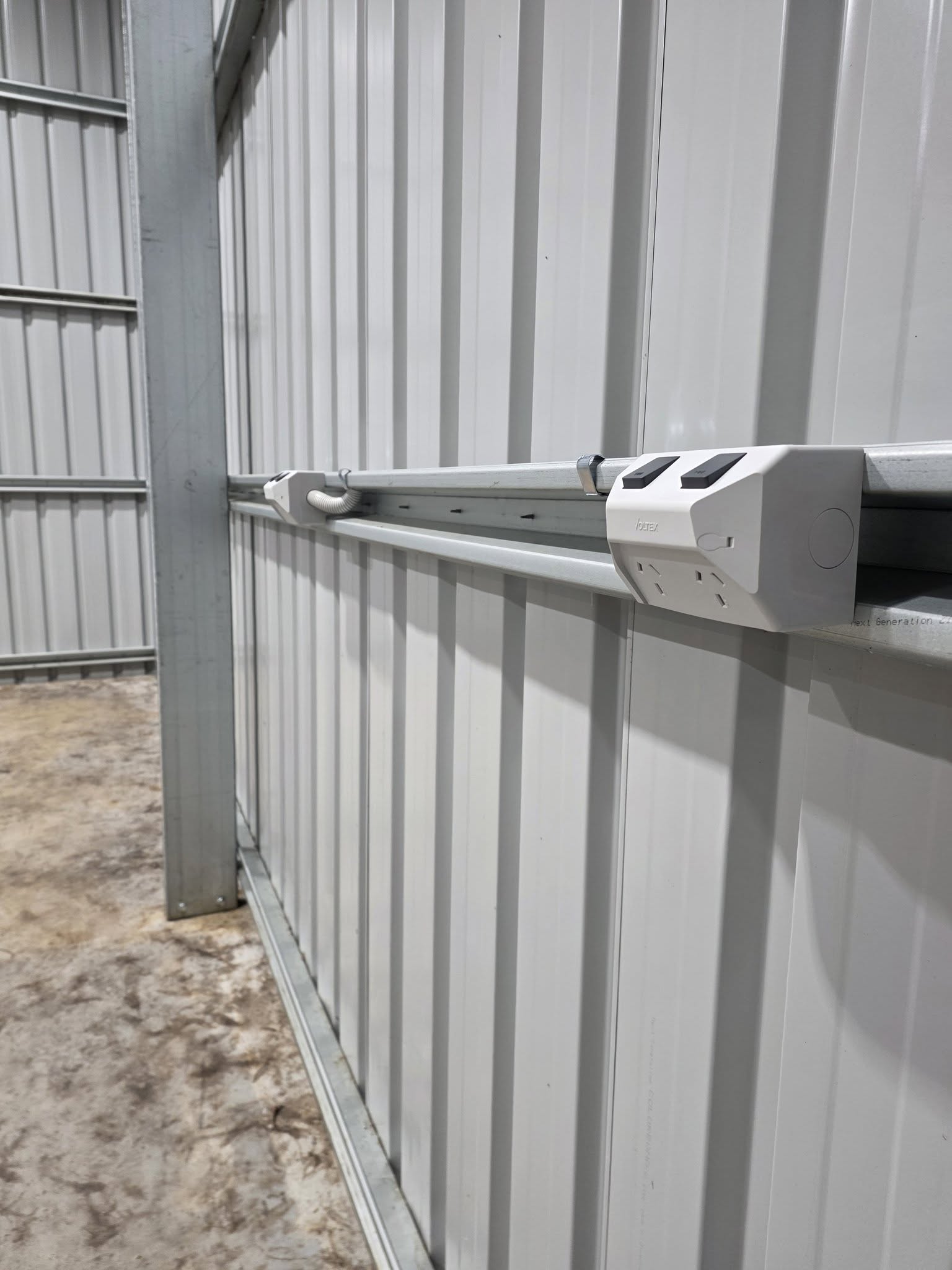

• Two to four general power points — This number is sufficient for plugging in chargers, radios, or a drop saw whenever necessary. Standard power points and switches will operate on a single circuit, ensuring versatility for various tools.
• External light — An outdoor-rated LED light positioned above the door ensures that you can access the shed safely without fumbling in the dark, enhancing both safety and convenience.

Planning a Fully Powered Workshop Shed for Maximum Efficiency

If you frequently use power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements will extend beyond basic setups and require meticulous planning:

• Multiple circuits — Create separate circuits for lighting, general power, and specialised power tool outlets. This configuration prevents lights from flickering each time you activate a saw, ensuring a stable working environment.
• Higher-rated power points — Install 15-amp or 20-amp outlets to effectively accommodate heavier tools, ensuring you have the correct power supply for your equipment.
• Increased number of power points with optimal placement — Ensure outlets are positioned at bench height rather than solely at skirting level, facilitating ease of use based on your workbench configuration.

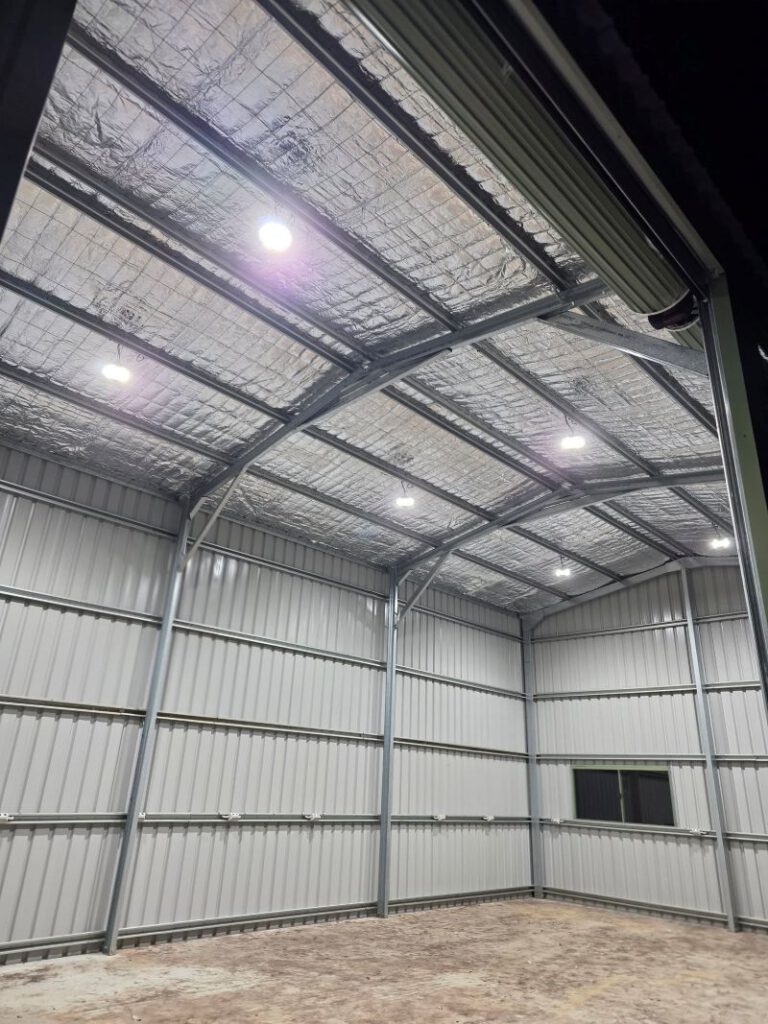

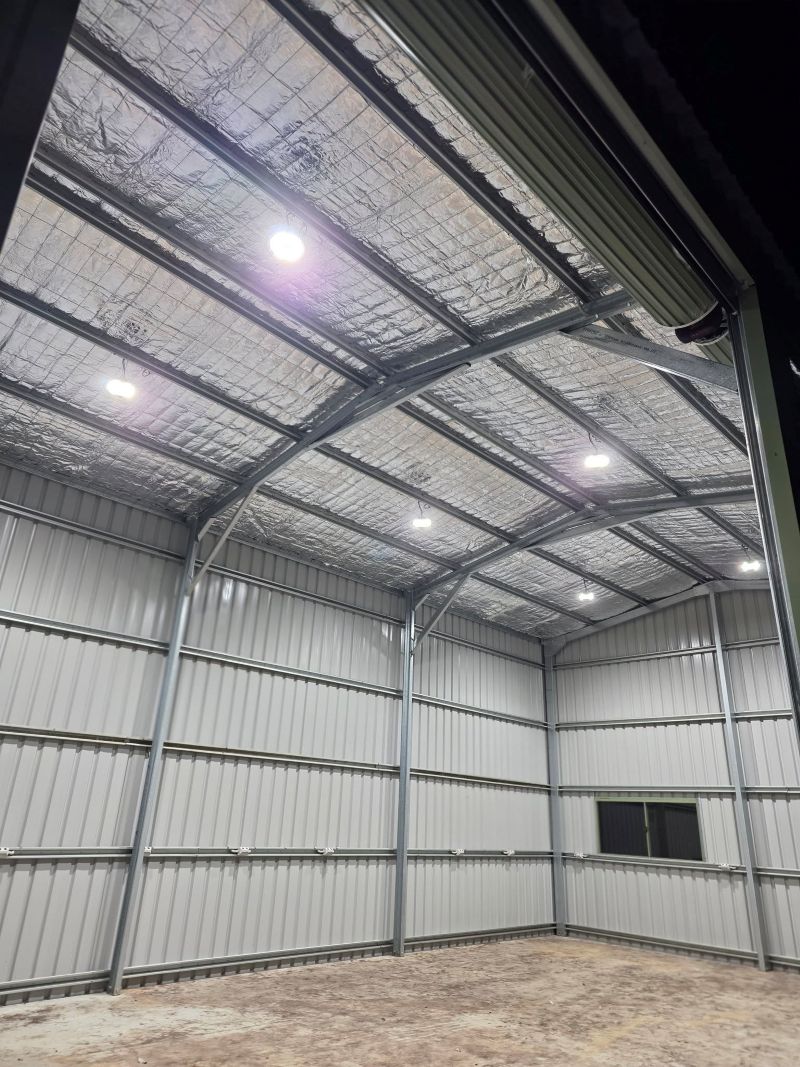

• Dedicated lighting — Provide brighter, targeted lighting over work areas, utilising LED high-bays for larger sheds to enhance visibility and safety.

For comprehensive guidance on establishing dedicated circuits for heavy tools, check out Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which delves into the specifics of effective wiring solutions.

Equipping a Comprehensive Workshop with Essential Three-Phase Power

If your activities involve heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not suffice. This is where three-phase power becomes essential to meet your demands.

Three-phase power provides a more stable and higher-capacity power supply, allowing you to operate multiple heavy-duty machines simultaneously without sacrificing performance. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast area).
• Install a three-phase sub-board in your shed, complete with the necessary breakers and RCDs to ensure safety and compliance.
• Utilise heavier cabling — Keep in mind that three-phase cable runs can be more expensive, especially over extended distances, so careful planning is vital.
• Set up three-phase outlets — These heavy-duty sockets are specifically rated for the equipment you plan to operate, providing the necessary power for effective functioning.

If you’re unsure whether you require three-phase power, read Do I Need Three-Phase Power on My Property? — this resource discusses when it is beneficial and when a properly configured single-phase system will suffice. We also provide full three-phase switchboard installation if that aligns with your needs.

Securing Essential Surge Protection for Your Shed

Properties situated on the Mid North Coast often experience intense lightning storms. A direct or nearby strike can potentially damage everything within your shed, including tools, chargers, fridges, and any devices plugged in, leading to costly repairs.

Investing in a reliable surge protection device, installed within the sub-board, serves as inexpensive insurance against electrical surges. It absorbs voltage spikes before they can reach and damage your valuable equipment. For sheds housing costly tools or workshop setups, this measure proves invaluable and could save you significant costs in the long run.

If your property also utilises a generator for backup power, your electrician can install a generator changeover switch, ensuring that both the shed and the house can safely transition to generator power during outages, maintaining critical operations during emergencies.

What Are the Council Approval and Compliance Requirements?

Here are several important considerations to keep in mind:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical work — including cabling, connections, and sub-board installation — must be handled by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion.
• Depth of underground cable must comply with AS/NZS 3000 (the Wiring Rules), a standard your electrician will ensure compliance with during the installation process.
• If the shed is newly constructed, you may need development approval depending on your local council and the size of the shed. While the electrical work itself might not require a separate permit, the overall construction may necessitate one.

Hack-It Electrical Solutions proudly holds the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete, ensuring peace of mind and adherence to local regulations.

Understanding the Costs Associated with Shed Wiring on Acreage

Each shed presents unique challenges — including distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions affecting trenching. However, here’s a realistic cost guide for the Mid North Coast area:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+

Be aware that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all increase costs. The most effective way to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and gain a clear understanding of your shed's intended use and requirements.

If you would like a straightforward quote tailored to your specific setup, feel free to call us at 0402 079 803 or contact us here.

Addressing Common Queries Regarding Shed Wiring

Can I Wire My Shed Myself in NSW?

Absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This encompasses tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant dangers to you and your property. Your electrician will issue a Certificate of Compliance once the work has been completed, ensuring everything meets the required standards.

How Deep Must Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the route, the cable must be buried deeper, typically around 600mm or more. Your electrician will ascertain the appropriate depth for your specific property circumstances, ensuring compliance with safety regulations.

Do I Need a Separate Meter for My Shed?

In most instances, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed serves as a standalone dwelling or commercial premises — this consideration involves discussions with both the council and your energy distributor to ensure compliance with local regulations.

How Long Does It Take to Wire a Shed on Acreage?

A basic shed wiring job, which includes trenching, cable installation, sub-board setup, lighting, and power points, typically takes between one to two days once the trench is prepared. If you're digging the trench yourself, your electrician can provide guidance on the precise route and depth before you begin. Keep in mind that three-phase jobs may take longer due to the need to arrange the supply connection with the distributor first.

Can I Run Power From the Shed to Other Buildings?

Yes, you can. However, each additional building will require its own appropriately rated cable run and may need its own sub-board depending on the load. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are adequate from the outset, rather than trying to add components later and potentially creating issues with power distribution.
